Description

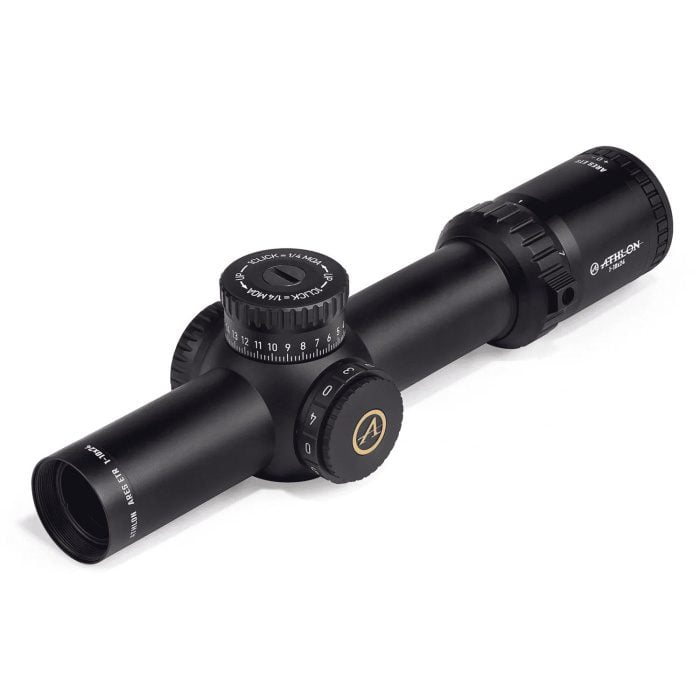

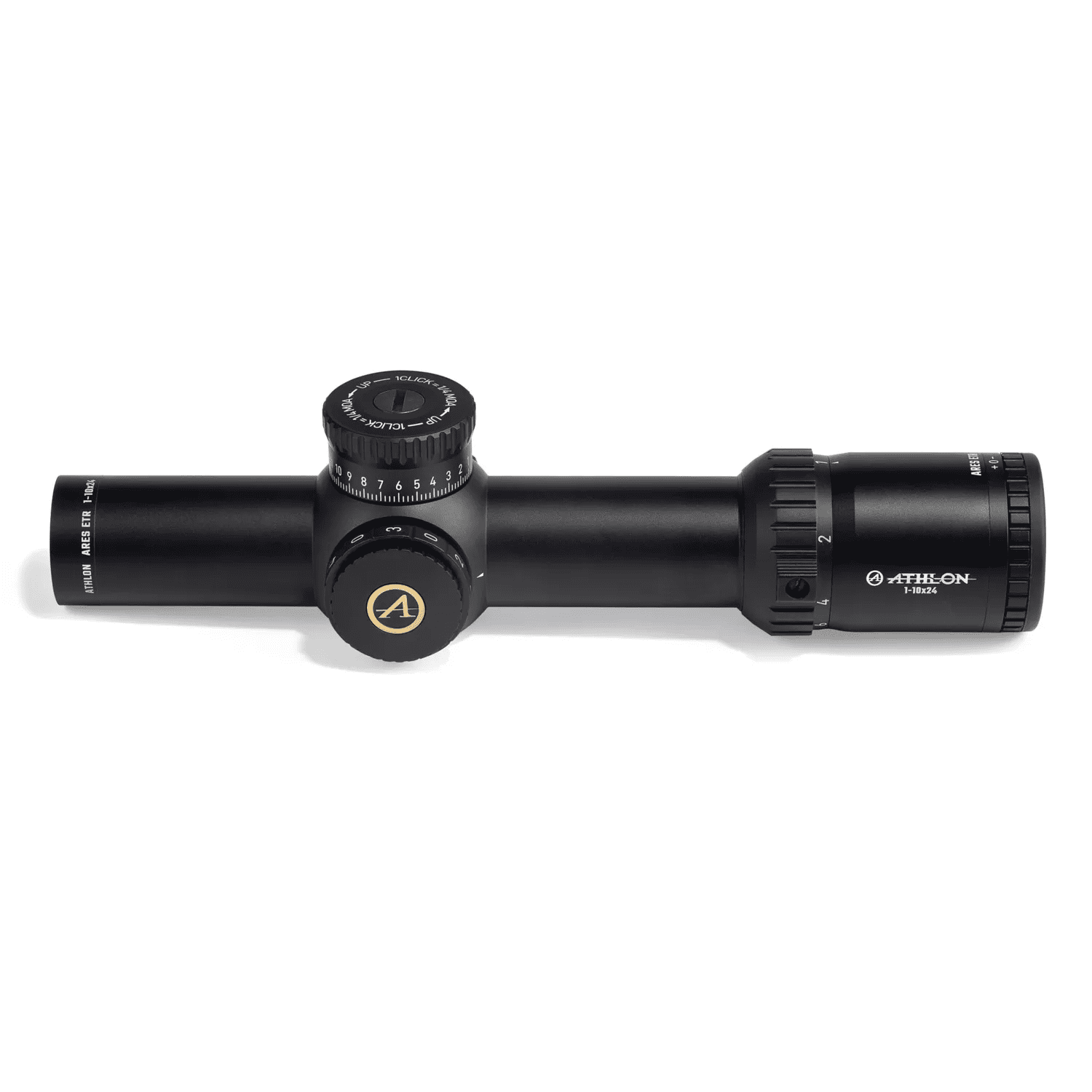

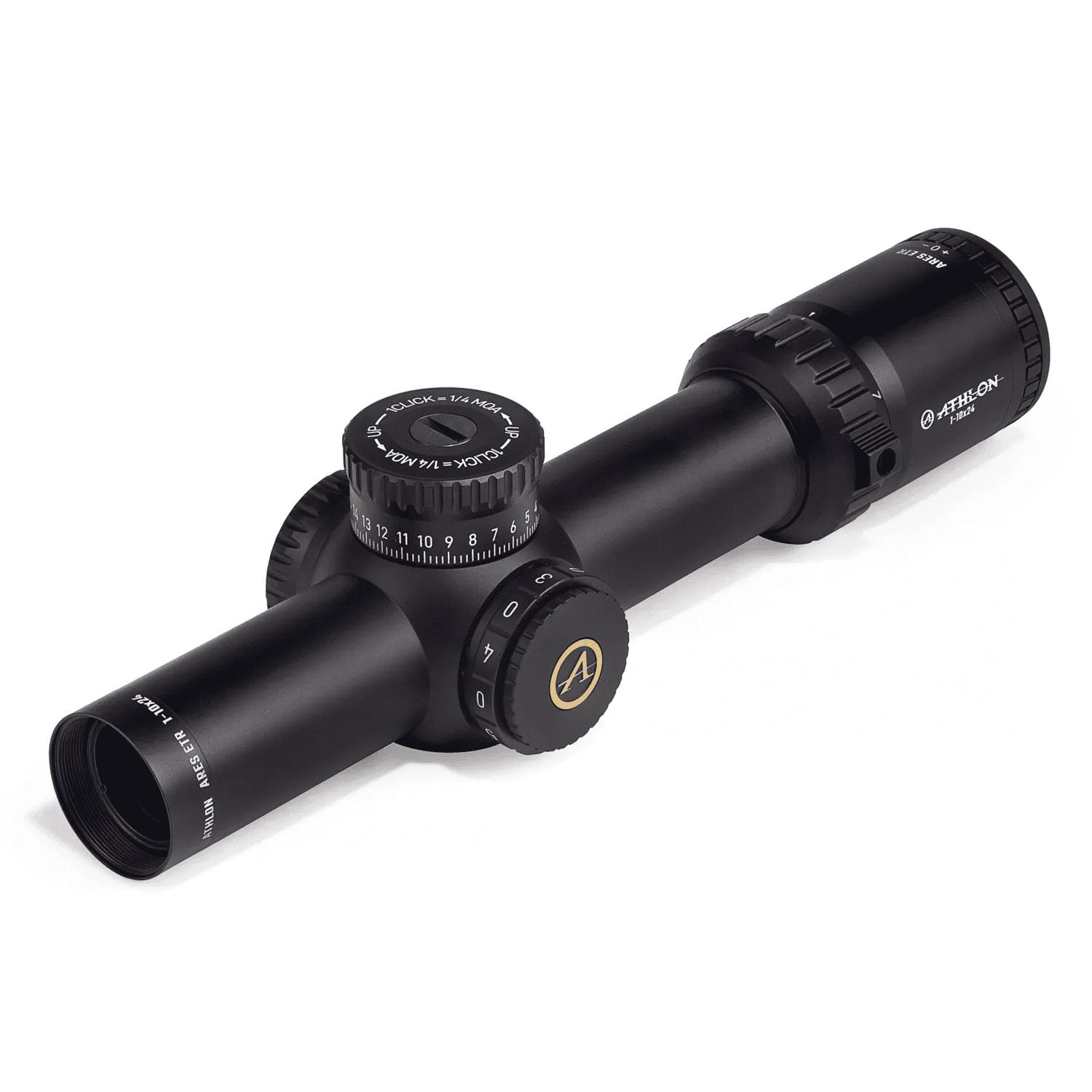

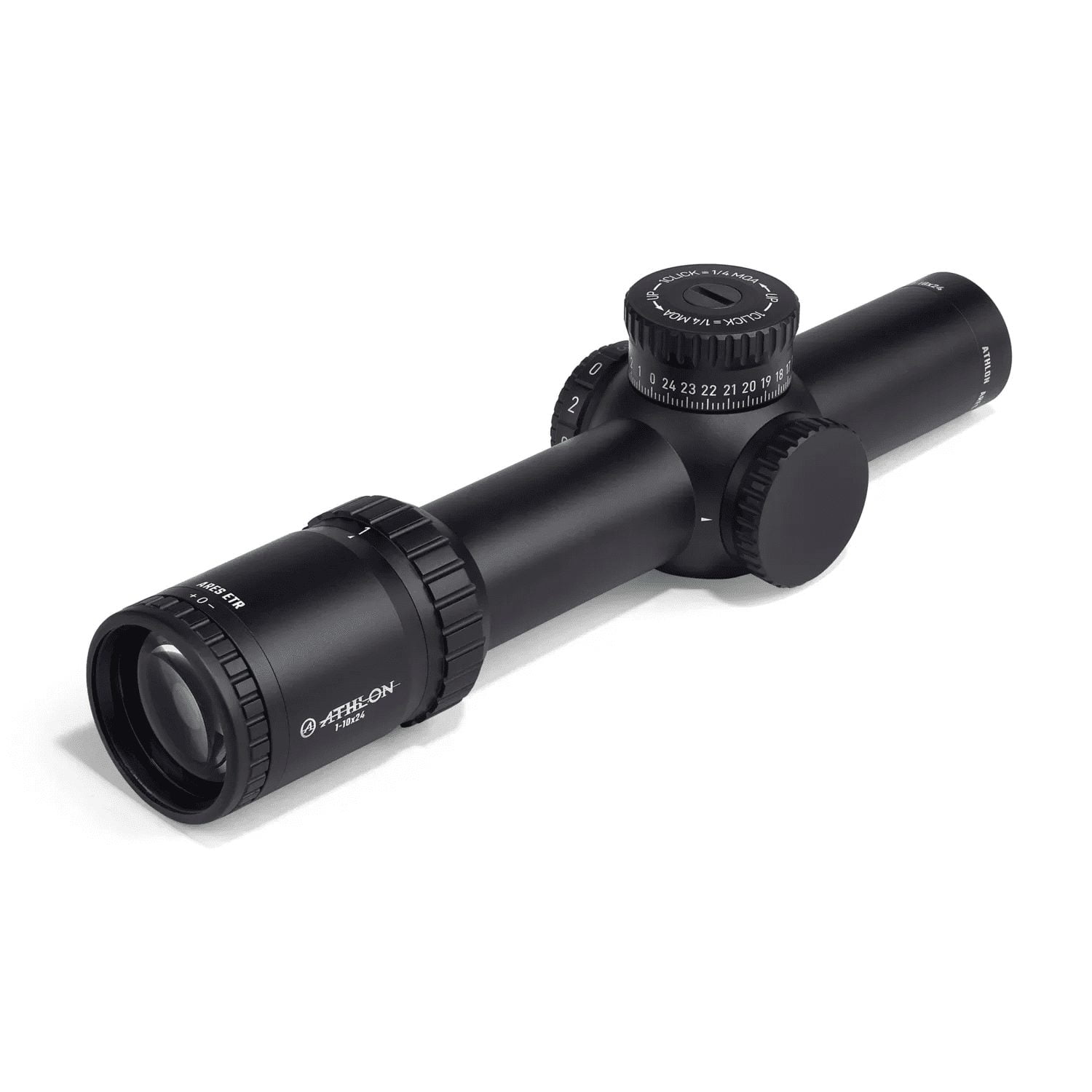

Meet the Ares ETR 1-10×24, the ultimate low power variable optic (LPVO) at an unbeatable price. Designed equally for expedient close-range engagements and precise long range shots. This 10x magnification range provides fast target acquisition and a wide field of view. The Ares ETR’s extraordinary versatility creates an exceptional option for any DMR (designated marksman rifle) setup. Locking turrets and a precision zero stop combined give any modern marksman peace of mind when they take to the woods. Regardless of terrain or species, the big game hunter will always be ready.
Reticle
Features
| UHD Glass | Extra-Low Dispersion glass significantly reduces chromatic aberration giving you an utmost bright and sharp image with true color reproduction. |
| Illuminated Reticle | The illuminated reticle provides greater visibility during dusk and dawn and other low ambient light environment. |
| First Focal Plane Reticle | First focal plane reticle stays valid at all power settings allowing you to fully utilize the specially designed reticle that shrinks or grows along with your target as you zoom in or out. The reticle offers quick target engagement at low power while offering precise holdover positions with finer details. |
| Etched Glass Reticle | Reticle etched on the glass that provides excellent backing support for complex reticle design and offers great durability and much higher shock resistance to recoil |
| Advanced Fully Multi-Coated | Fully Multi-Coated optics effectively reduces reflected light and increases the transmission of light giving you a brighter image than normal single coated lenses |
| XPL Coating | XPL Coating gives you an extra protection on the exterior lenses from dirt, oil and scratches or anything else mother nature can throw at you. |
| Precision Zero Stop System | The system allows you to lock down your zero position and dial back to it with a sharp and precise stop right at your zero mark even you are turning it in pitch-dark or blind folded. |
| Locking Elevation Turret | This Locking Feature allows you to push down to lock the turret and pull up to turn. This feature prevents the elevation knob from being turned accidentally and keeps your zero all the time. |
| High Precision Erector System | The high precision erector system processed by high precision CNC machine with +/- 0.0001mm tolerance level to provide you the most accurate power settings and smoothest magnification change |
| One Piece Tube Construction | Heat treated one piece tube gives the scope extra strength over multi-piece tubes. A one piece tube also is better at keeping moisture out thus keeping your scope fog proof for the life of the product |
| Waterproof | Waterproof to protect the scope in the harshest weather conditions or if accidently submerged underwater |
| Fog proof | Fog proof to allow you to immediately engage your target when you take your rifle to cold ambient temperature from warm inside |
| Shockproof | Robust mechanical system with special designs on both control and erector system that give you the ultimate recoil resistance to withstand 1000G recoil for 1000 times. |
| Argon Purged | Argon Purging uses the inertia gas with bigger size molecules to purge any moisture out of the tube giving you better waterproofing and thermal stability . |
Specifications
| Magnification | 1-10 |
| Objective Lens Diameter | 24 mm |
| Reticle | ATMR2 FFP IR MOA, Glass Etched |
| Surface Finish | Matte/Brown |
| Lens Coating | Advanced Fully Multi-Coated |
| Extra Coating | Xtra Protective Coating |
| Tube Material | Aircraft Grade Aluminium |
| Tube Diameter | 34 mm |
| Eye Relief | 3.7″ |
| Field of View @100 yards | 117.3-11.7 ft |
| Click Value | 0.25 MOA |
| Adjustment range per rotation | 25 MOA |
| Total Elevation Adjustment | 100 MOA |
| Total Windage Adjustment | 80 MOA |
| Turret Style | Locking Elevation/Capped Windage Turret |
| Parallax Adjustment | 100 Yards |
| Purging Material | Argon |
| Length | 10″ |
| Weight | 26.9 oz |
| User Instruction Manual | Download |
| Reticle Manual | Download |
Additional information
| Brand | |
|---|---|
| Color |
Black |
| Country of Manufacture | |
| Finish | |
| Length | |
| Tier |
Best |
